GRANAR-MECHA USERGUIDE

Author

Adrien Heymans, Marco D’Agostino, Valentin Couvreur, Guillaume Lobet

What is GRANAR?

GRANAR stands for Generator of Root ANAtomy in R. The GRANAR model is able to generate complete cell networks of root cross-sections using a small set of root anatomical parameters These root anatomical features can typically be gathered using software image analysis such as ImageJ (Schneider, Rasband, and Eliceiri 2012). Once the root anatomy is created, the cell network can be saved as an eXtended Markup Language (XML) file. The structure of the XML files created by GRANAR are identical to the ones created by CellSeT (Pound et al. 2012) (a software which digitize root anatomical network).

How to use GRANAR?

Load functions

GRANAR is available as an R package. The ‘granar’ package can be found on GitHub. You can clone the repository with Github desktop and load all functions :

# Load GRANAR with local functions
granar_path <- "../granar/R/"
for(i in list.files(granar_path)){
  # print(i)
  source(paste0(granar_path, i))
}

Alternatively, GRANAR can be installed localy by simply executing the following line in the R environment:

install_github("granar/granar")
library(granar)

Run GRANAR

To run GRANAR, we use :

  • The function read_param_xml() loads parameters from xml files
  • The function create_anatomy() generates the virtual cross section with input params
  • The function plot_anatomy() displays the generated anatomy

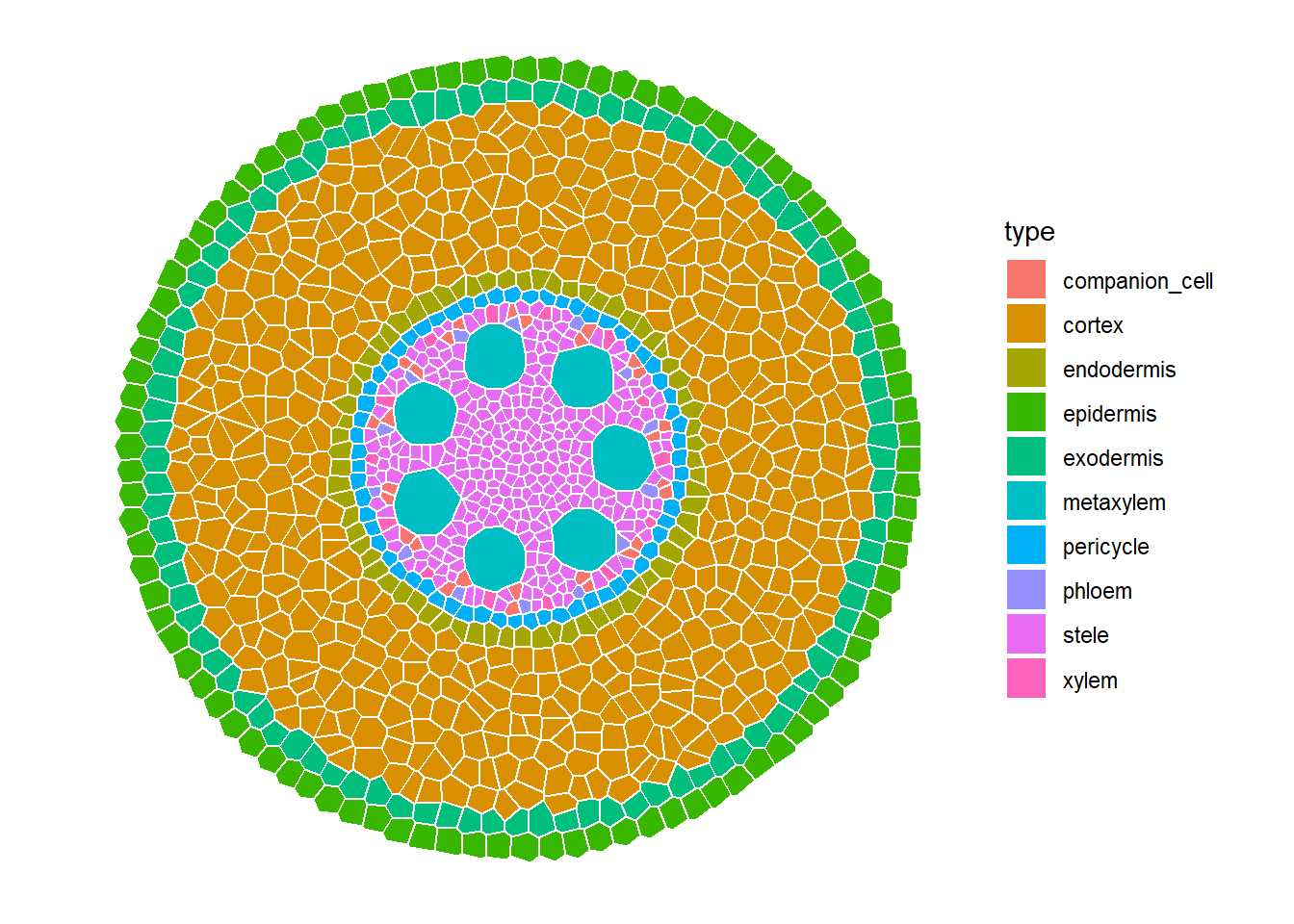

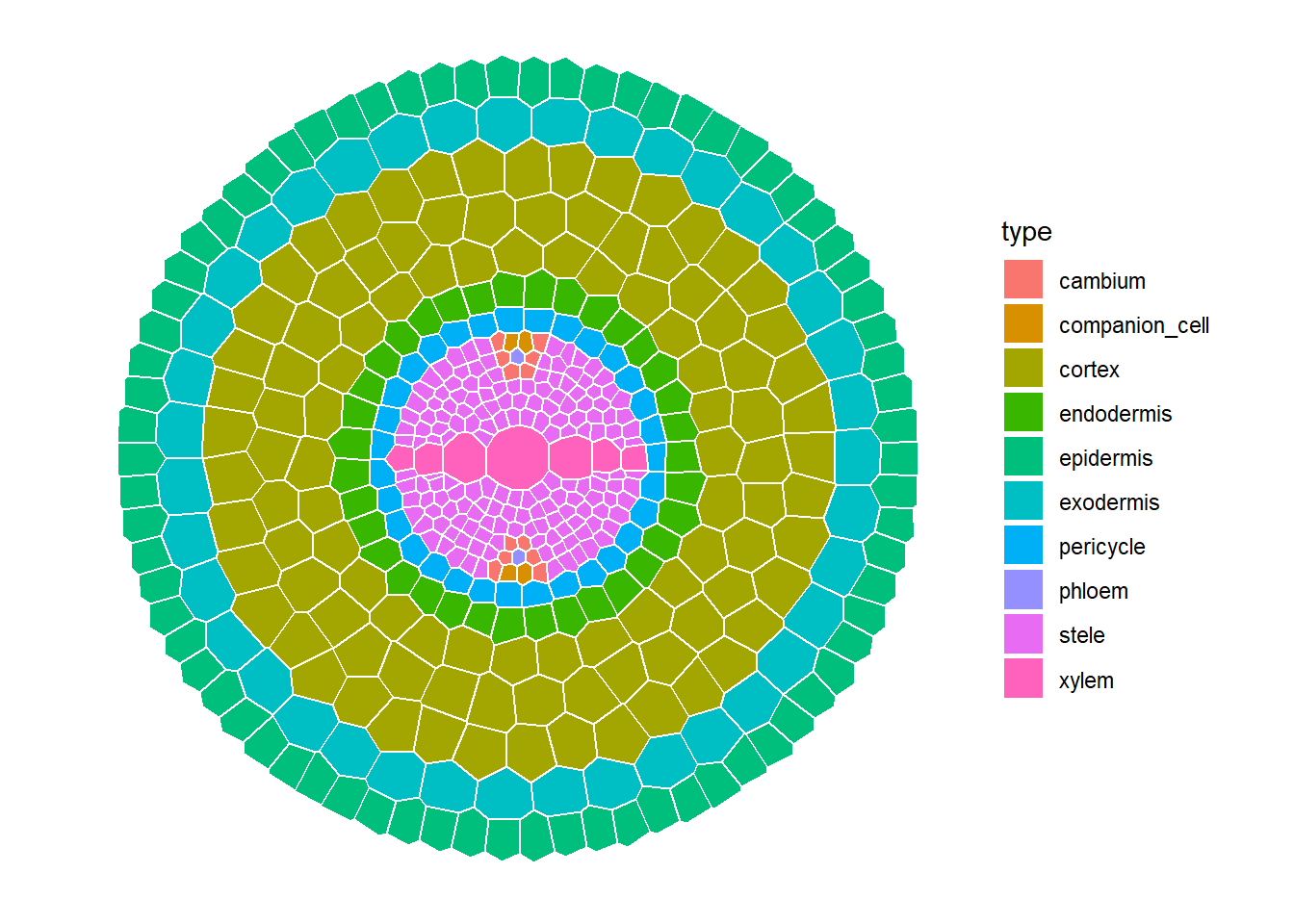

Monocot (wheat)

param1 <- read_param_xml(path = "Params/Wheat_F_Atkinson_2017.xml")
sim1 <- suppressWarnings(create_anatomy(parameters = param1))
plot_anatomy(sim1)
Warning: `aes_string()` was deprecated in ggplot2 3.0.0.
ℹ Please use tidy evaluation idioms with `aes()`.
ℹ See also `vignette("ggplot2-in-packages")` for more information.

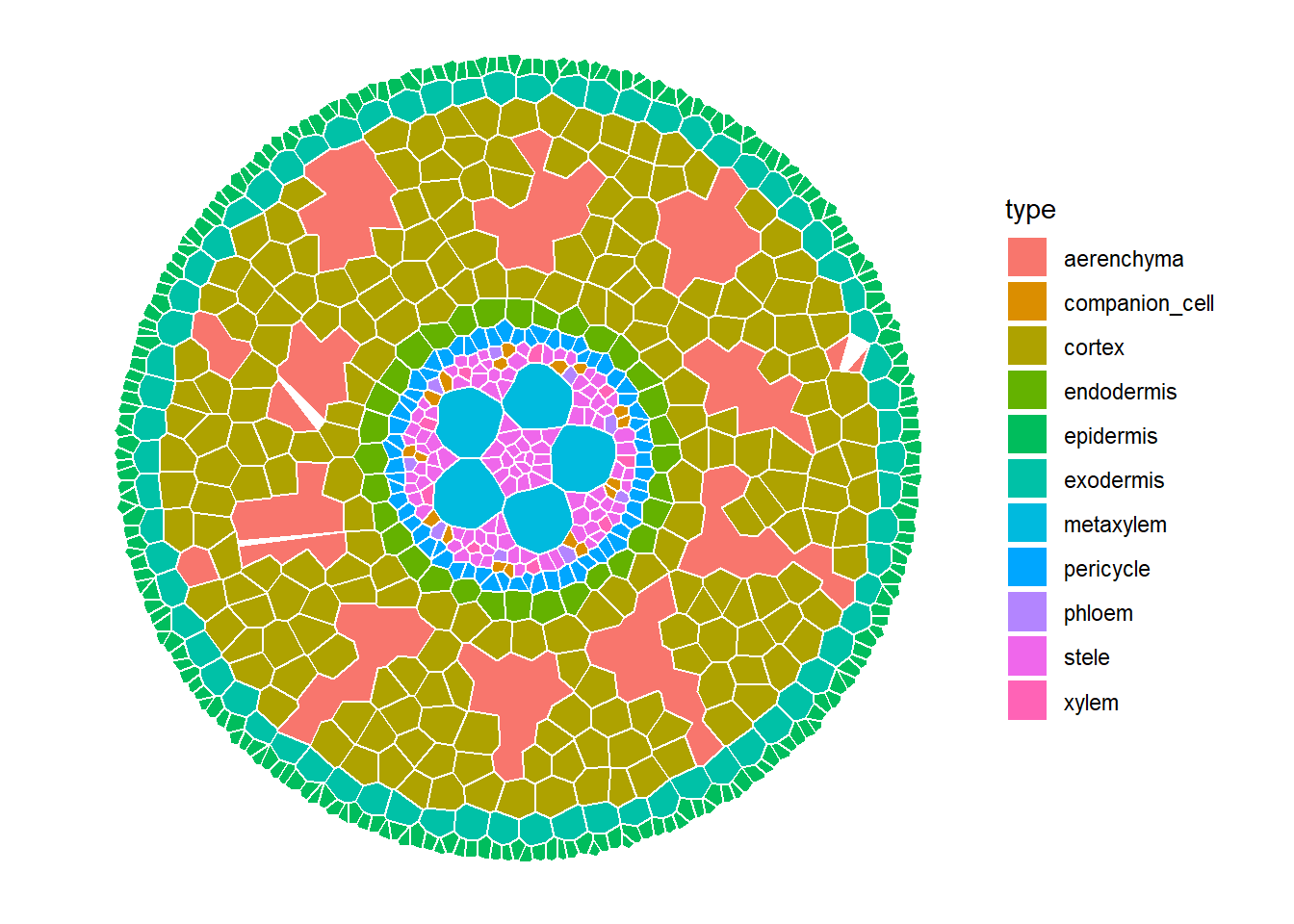

Maize with aerenchyma

param <- read_param_xml(path = "Params/Zea_mays_Heymans_2019.xml")
sim <- suppressWarnings(create_anatomy(parameters = param))
1/10
2/10
3/10
4/10
5/10
6/10
7/10
8/10
9/10
10/10
Time difference of 6.251544 secs
plot_anatomy(sim)

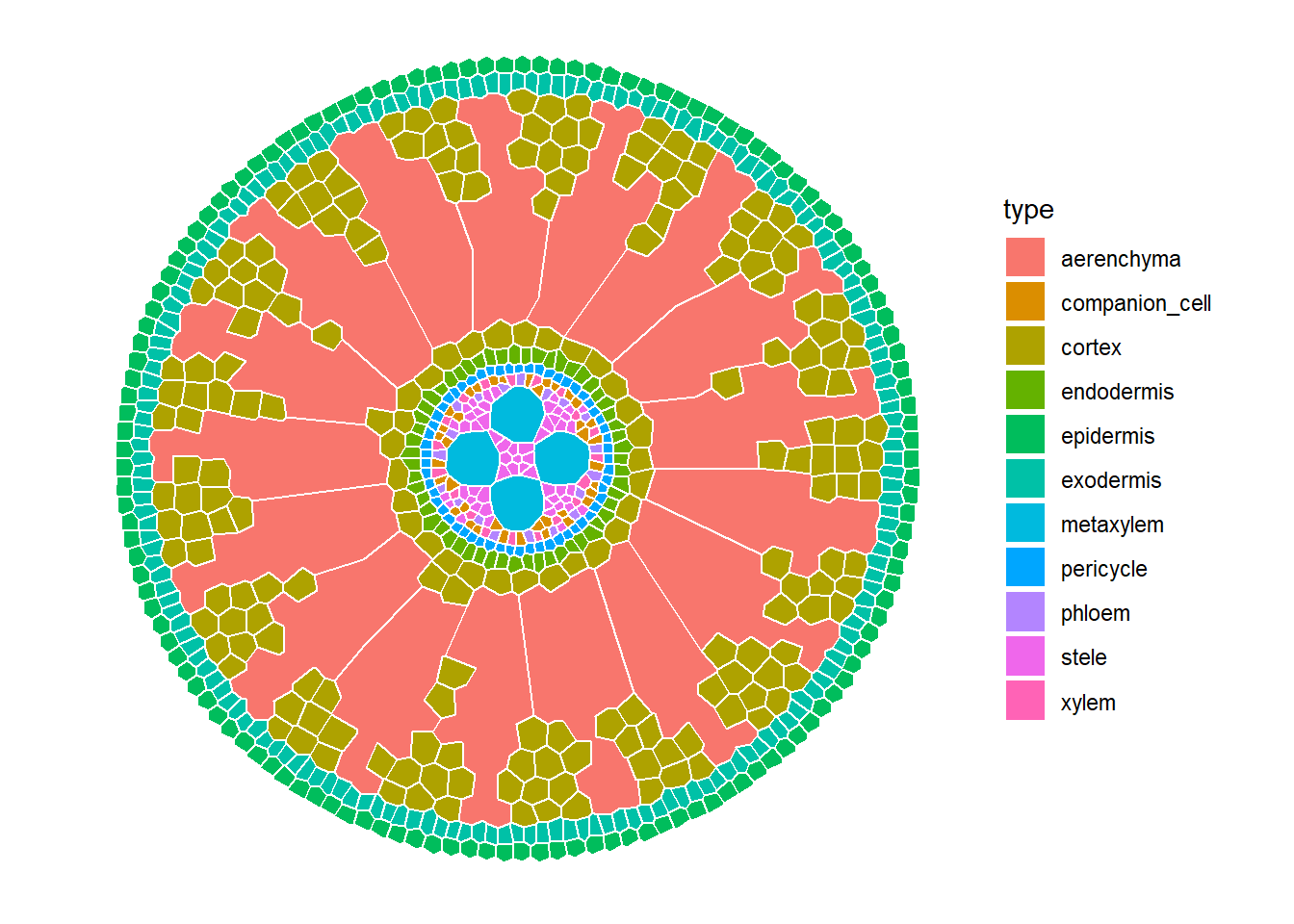

Rice

param <- read_param_xml(path = "Params/Rice_D_Atkinson_2017.xml")
sim <- suppressWarnings(create_anatomy(parameters = param))
1/17
2/17
3/17
4/17
5/17
6/17
7/17
8/17
9/17
10/17
11/17
12/17
13/17
14/17
15/17
16/17
17/17
Time difference of 7.037845 secs
plot_anatomy(sim)

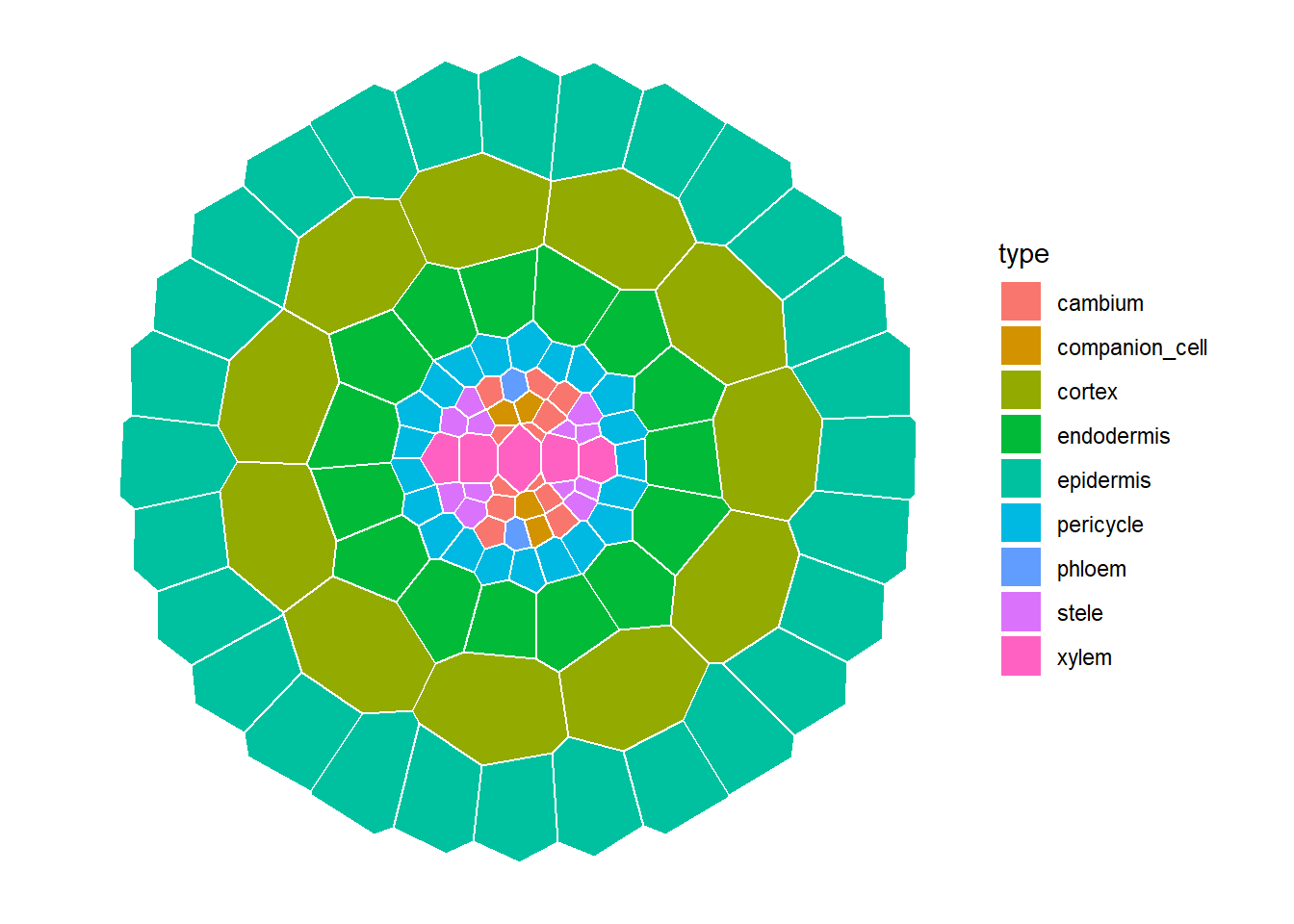

Arabodopsis

param <- read_param_xml(path = "Params/Arabidopsis.xml")
Warning in read_param_xml(path = "Params/Arabidopsis.xml"): Could not find the
'exodermis' tag in the XML file
sim <- suppressWarnings(create_anatomy(parameters = param))
Time difference of 0.7477031 secs
plot_anatomy(sim)

Primary growth dicot (tomato)

param2 <- read_param_xml(path = "Params/Tomato_primary.xml")
sim2 <- suppressWarnings(create_anatomy(parameters = param2))
plot_anatomy(sim2)

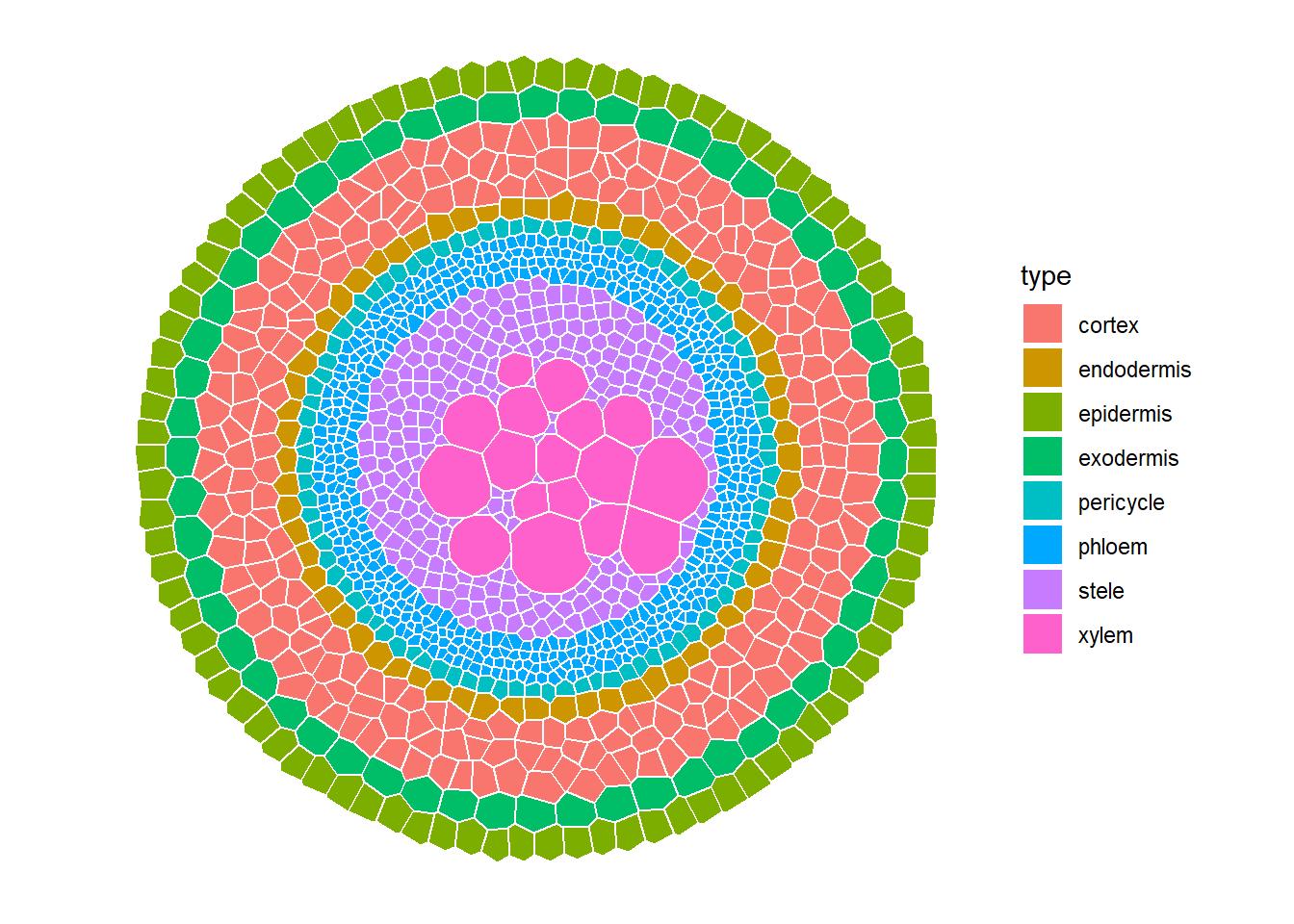

Secondary growth dicot (tomato)

param3 <- read_param_xml(path = "Params/Tomato_secondary.xml")
sim3 <- suppressWarnings(create_anatomy(parameters = param3))
plot_anatomy(sim3)

To save virtual anatomies, we can use the function write_anatomy_xml() :

write_anatomy_xml(sim = sim1, path = "Anatomies/Wheat.xml")
write_anatomy_xml(sim = sim2, path = "Anatomies/Tomato_primary.xml")
write_anatomy_xml(sim = sim3, path = "Anatomies/Tomato_secondary.xml")

MECHA

MECHA is the solver of local conductivities (Couvreur 2018)

Set up steps to run it in local :

  1. Open ANACONDA NAVIGATOR

  2. Create a new environment with python 3.7 (in this work it is called GRANAR-MECHA)
    conda create -n GRANAR-MECHA python=3.7

  3. Load that environment

    conda activate GRANAR-MECHA

  4. Install MECHA requirements in the environement :
    conda install numpy
    conda install scipy
    conda install matplotlib
    conda install lxml
    conda install pip
    pip install networkx==1.9.1

By default, MECHA loads the cross section named current_root.xml in the cellsetdata folder, so we need to copy the anatomy we created to that folder ;

anatomy_file <- "Tomato_primary.xml"
file.copy(from = paste0("Anatomies/", anatomy_file),to = "MECHA/cellsetdata/", overwrite = T)
file.rename(paste0("MECHA/cellsetdata/", anatomy_file), "MECHA/cellsetdata/current_root.xml")

sim1 <- get_root_section(path = paste0("Anatomies/", anatomy_file))
ggplot(sim1) +
    # geom_polygon(aes_string("x", "y", group="id_cell", fill=col), colour="white") +
    geom_polygon(aes(x = x, y = y, fill = type, group = id_cell),
                 color = "white") +
    theme_classic() +
    coord_fixed() +
    theme(axis.line=element_blank(),
          axis.text.x=element_blank(),
          axis.text.y=element_blank(),
          axis.ticks=element_blank(),
          axis.title.x=element_blank(),
          axis.title.y=element_blank())

By default, MECHA can simulate different scenarios : *

  • B0 : [Special case] No apoplastic barriers

  • B1 : Endodermal Casparian strip (radial walls)

  • B2 : Endodermal suberization except at passage cells

  • B3 : Endodermis full suberization

  • B4 : Endodermis full suberization and exodermal Casparian strip (radial walls)

  • B5 : Endo- and exodermal Casparian strips (radial walls)

  • B6 : Exodermis full suberization and endodermal Casparian strip (radial walls)

  • B7 : Exodermal Casparian strip (radial walls)

  • B8 : Endo and exodermal suberization

  • B9: Lignin Cap and endodermal CS

Here we choose to compute scenarios 1, 3 and 8. You can change the simulated scenarios in MECHA/Projects/granar/in/Maize_Geometry.xml in line 19.

Let’s run MECHA :

# use_condaenv("GRANAR-MECHA")
# sys <- import("sys", convert=T)

unlink("MECHA/Projects/granar/out/Tomato/Root/Project_Test/results/")
try(py_run_file("MECHA/MECHA_example.py"))

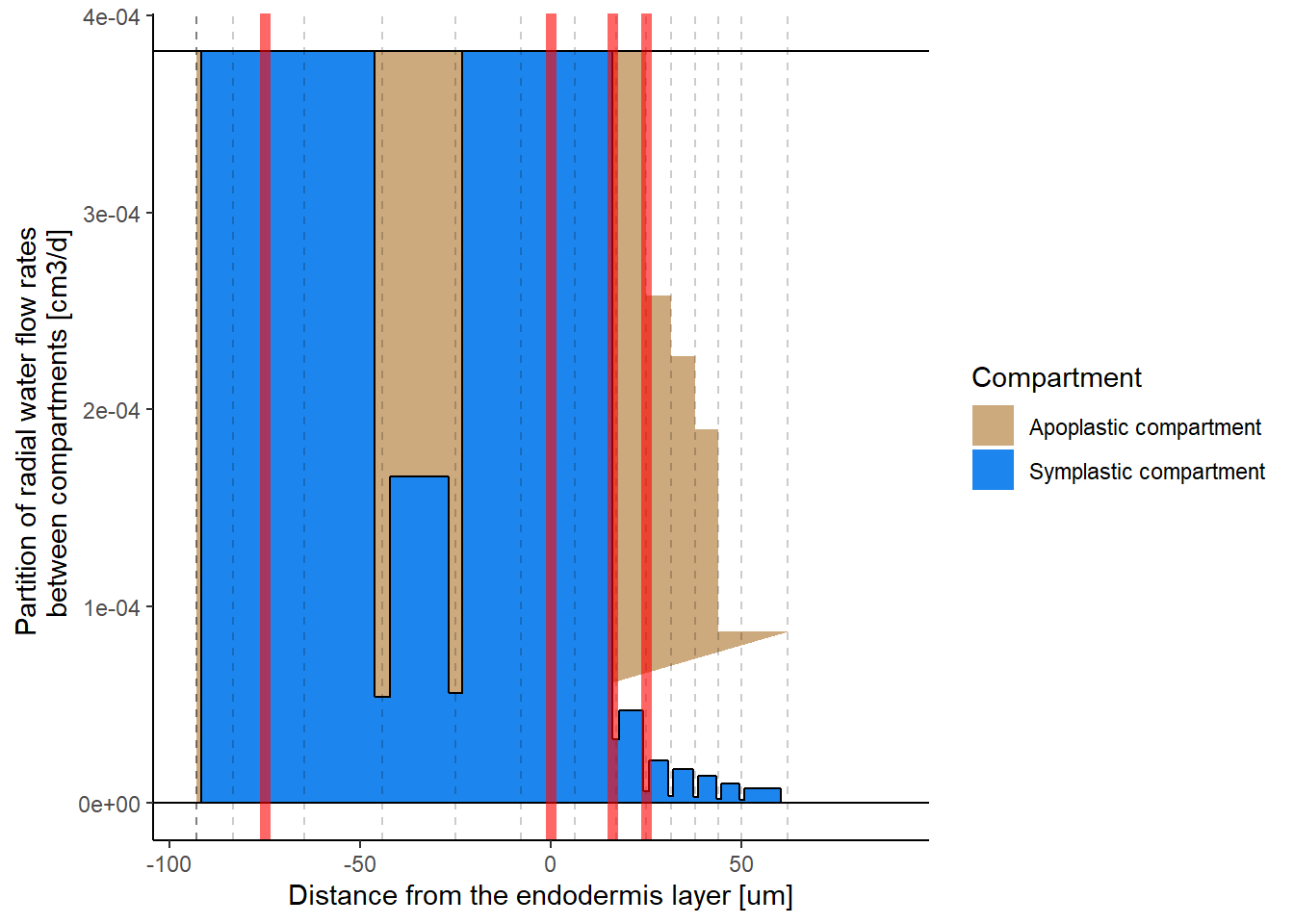

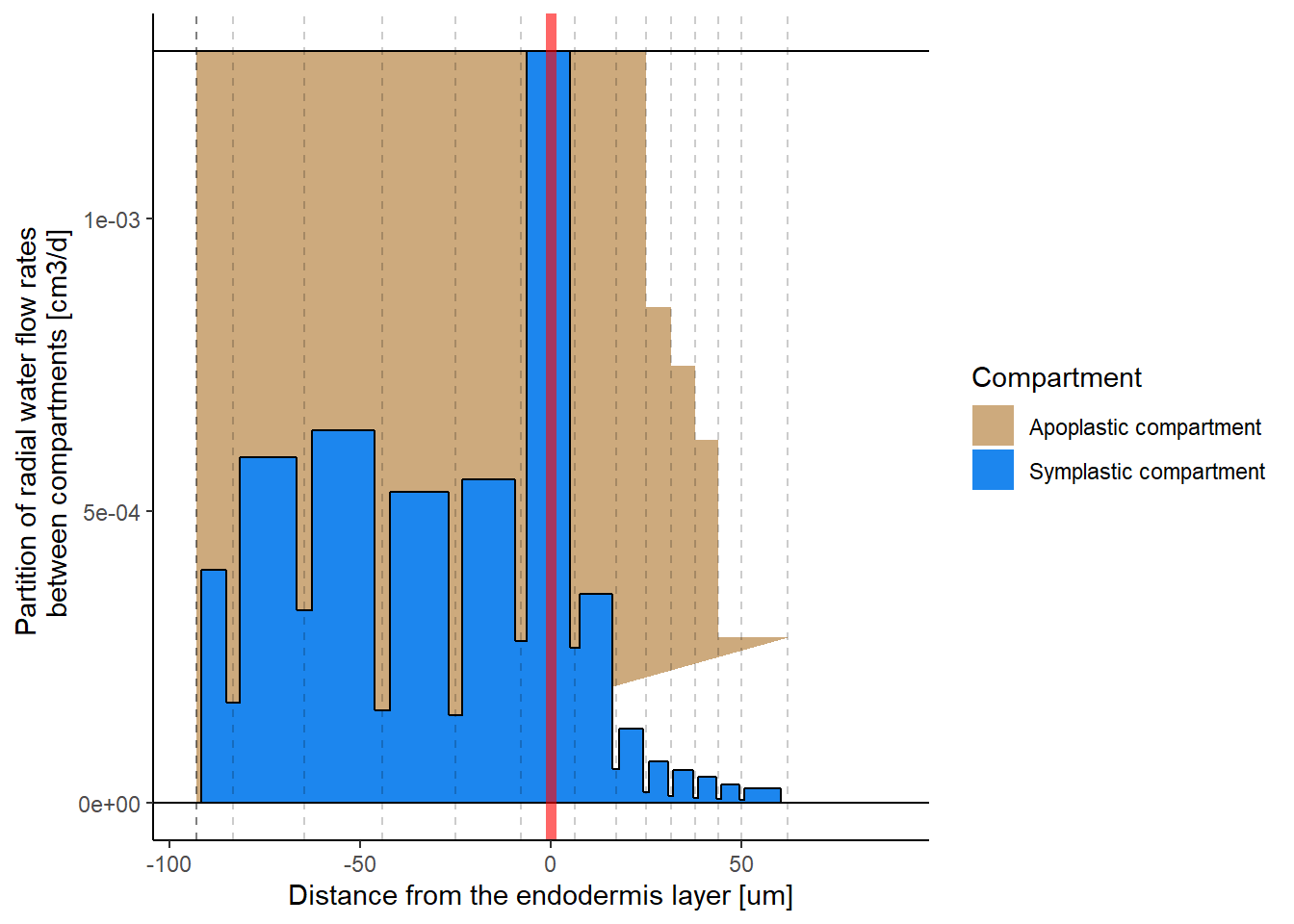

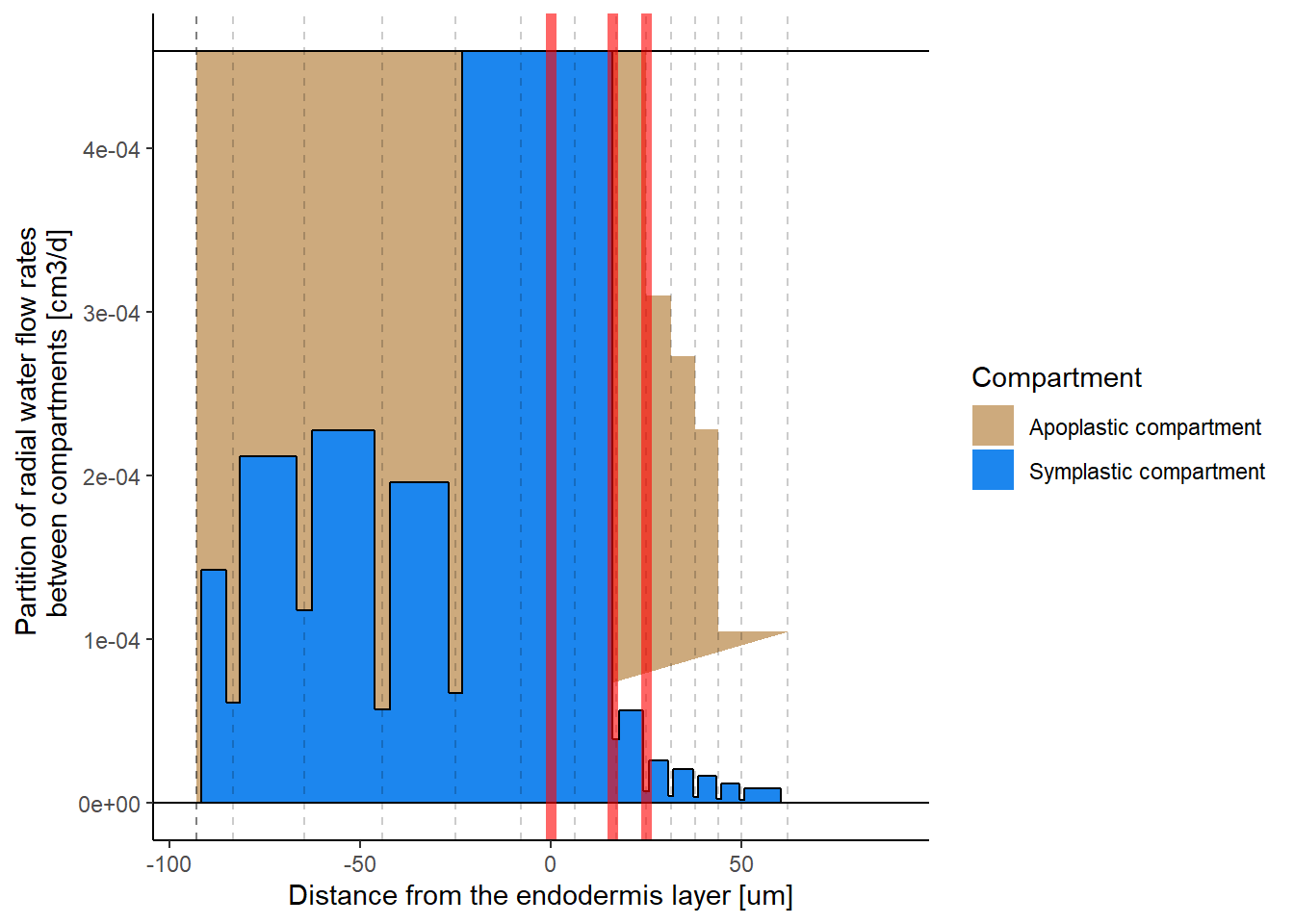

We can visualise the ratio of symplastiv vs. apoplastic flows for each scenario : nb ; Graphs are broken with Secondary Growth scenario

rp <- "MECHA/Projects/granar/out/Tomato/Root/Project_Test/results/"

Flux1 <- ApoSymp(paste0(rp,"Macro_prop_1,0.txt")) # Endodermal CS
Flux2 <- ApoSymp(paste0(rp,"Macro_prop_3,1.txt")) # Endodermis suberised
Flux3 <- ApoSymp(paste0(rp,"Macro_prop_8,2.txt")) # Exo- and Endodermis fully suberised

plot_water_flux(Flux1, apobar = 1)

plot_water_flux(Flux2, apobar = 2)

plot_water_flux(Flux3, apobar = 3)

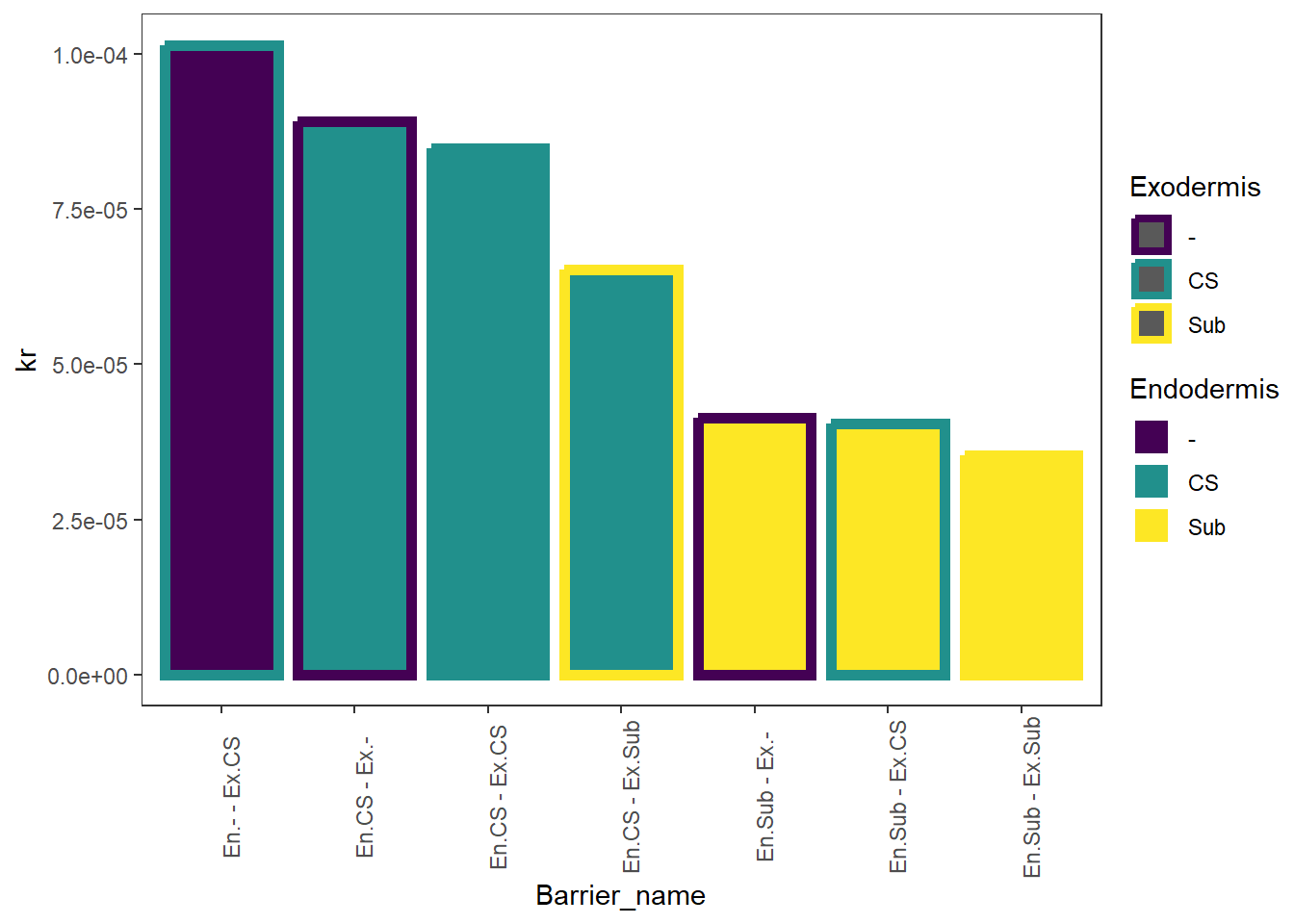

We can load radial conductivity \(k_r\) and axial conductance \(K_x\) :

conds <- load_MECHA_out()
pander(conds)
ID Kx kr perimeter
1 0.02385859366092221 0.0001254278440673108 0.10262259718130115
2 0.02385859366092221 4.4759914335687034e-05 0.10262259718130115
3 0.02385859366092221 3.721398193800901e-05 0.10262259718130115

References

Pound, Michael P, Andrew P French, Darren M Wells, Malcolm J Bennett, and Tony P Pridmore. 2012. “CellSeT: Novel Software to Extract and Analyze Structured Networks of Plant Cells from Confocal Images.” Plant Cell 24 (4): 1353–61.
Schneider, Caroline A, Wayne S Rasband, and Kevin W Eliceiri. 2012. “NIH Image to ImageJ: 25 Years of Image Analysis.” Nat. Methods 9 (7): 671–75.
